Photo Stability Chambers

Get a Price/Quote

Product Details:

Model No PSC Series
Power Source Electric
Measurement Range 10C to 60C (temperature); Light range per ICH guidelines
Material Steel
Temperature Range 10C to 60C (0.5C)
Automation Grade Automatic
Product Type Photo Stability Chambers
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Photo Stability Chambers Price And Quantity

Minimum Order Quantity 1 Unit

Photo Stability Chambers Product Specifications

Feature Uniform illumination, programmable control system, UV and Visible light compliance, alarm system, glass observation window
Frequency 50/60 Hz
Voltage 220/230V AC
Accuracy 0.5C
Product Type Photo Stability Chambers
Automation Grade Automatic
Capacity 250 Litre, 400 Litre, 1000 Litre, 2000 Litre (customized on request)
Core Components Compressor, temperature/humidity sensors, lighting system, control panel
Type Photo Stability Chambers
Equipment Materials Powder coated stainless steel (internal & external)
Weight Varies with capacity (approx. 120-450 Kg)
Usage Pharmaceutical stability study, laboratory testing
Temperature Range 10C to 60C (0.5C)
Material Steel
Dimension (L*W*H) 600 x 600 x 800 mm, 700 x 800 x 900 mm, 900 x 1000 x 1800 mm, and customized options
Model No PSC Series
Display Type Digital LED display
Measurement Range 10C to 60C (temperature); Light range per ICH guidelines
Power Source Electric

Mobility Caster wheels for easy movement
Number of Shelves Adjustable type, typically 2-6 shelves depending on capacity
Illumination Intensity 1.2 million lux hours, 200 watt-hours/square meter UV energy (per ICH Q1B)
Observation Door Double-walled door with full-length glass observation window
Cooling System CFC Free Refrigeration system
Chamber Construction Double-walled, rust-proof design
Controller Microprocessor-based programmable PID controller
Humidity Control 40% to 90% RH (3% RH)
Interior Lighting Timer Programmable 1 to 99 Hours
Standards Compliance Complies with ICH Q1A & Q1B guidelines
Insulation Polyurethane foam insulation, 65 mm thickness
Safety Features Over temperature protection, door open alarm, compressor protection relay
Lighting Type Fluorescent and UV-A lamps
Optional Features 21 CFR Part 11 software, SMS alert, remote monitoring, custom shelving
Alarm System Audio-visual alarm for temperature/humidity deviation
Data Recording Digital data logger with RS-232/USB interface & printer output

Photo Stability Chambers Trade Information

Supply Ability 2 Unit Per Month
Delivery Time 7 Days

Product Description

Within a short span of nine years, we have established ourselves as a distinguished manufacturer, exporter and supplier of Photo Stability Chambers. These chambers are specifically designed to perform near UV and visual light testing with fluorescent lamps. Our provided chamber enables the user to test the samples on fluorescent light or U.V lights separately as well as simultaneously. Designed using optimum grade raw materials including exterior made using power coated mild steel and interior made of stainless steel, these Photo stability Chambers are available in various specifications at reasonable prices.

Features:

Simple user interface
Negligible maintenance
Rugged construction
Ergonomic design

Models		Capacity		Internal Dimension	External Dimension	Weight (Kg)		Trays	Tray Size
Exterior M.S. & Interior S.S	Exterior & Interior S.S	Cuft	Ltrs.	HxWxD (mm)	HxWxD (mm)	Eqp	Shp	Nos.	(in mm)
NEC 208RHPI	NEC 208RHPSI	8	227	600 x 630 x 600	1285 x 790 x 895	200	275	1	580 x 550

Models		Capacity		Internal Dimension	External Dimension	Weight (Kg)		Tray
Exterior Powder Coated Steel or S.S.	Exterior & Interior S.S.	Cuft	Ltrs.	Hxwxd (mm)	Hxwxd (mm)	Eqp	Shp	Nos.	(in mm)
NEC 104RTSPI	NEC 104RTSPSI	4	100	450 x 450 x 480	875 x 700 x 645	80	155	1	410 x 440
NEC 108RSPI	NEC 108RSPSI	8	227	600 x 630 x 600	1285 x 790 x 895	200	275	1	580 x 550

Technical Details

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Stability Chambers' category

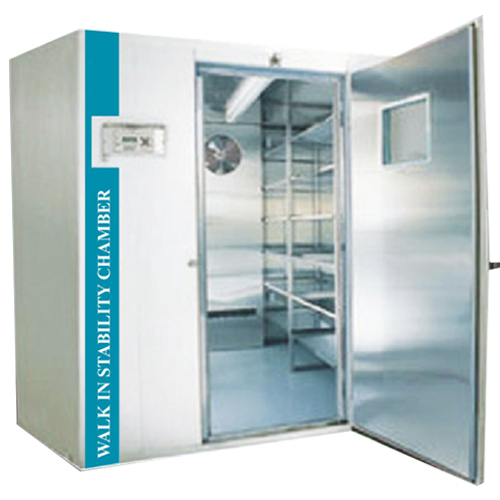

Walk in Stability Chamber Minimum Order Quantity : 1 Equipment Materials : Steel Weight : Varies as per capacity (approx. 8002500 kg) Temperature Range : 10C to 60C Usage : Pharmaceutical and Laboratory Stability Testing Material : Steel Dimension (L*W*H) : Customized as per requirement (e.g., 2.5 x 2 x 2.5 m) Model No : WSCSeries Measurement Range : 10C to 60C, 40% to 95% RH Display Type : Digital LED/LCD Display Power Source : Electric Accuracy : 0.2C Temperature, 2% RH Voltage : 220240V / 380415V Frequency : 50 Hz/60 Hz Feature : Microprocessor controller, Programmable cycles, Data logging, Safety alarms Product Type : Walk in Stability Chamber Automation Grade : Automatic Core Components : Compressor, Sensor, Controller, Humidifier, Dehumidifier Capacity : Custom sizes (commonly 5,000 to 50,000 Liters) Application : Industrial Type : Walkin Stability Chamber
