Centrifugal Fan

Name: Centrifugal Fan
Brand: BIOLINE TECHNOLOGIES
Price: 100000.00 INR
Availability: InStock

100000.00 INR/Set

Get a Price/Quote

Product Details:

Temperature Ambient to 80C
Efficiency Up to 75%
Measurement Air Volume
Air Flow 1000 - 20000 m/hr
Usage & Applications Industrial Ventilation, HVAC Systems, Dust Collection
Power Source Electric
Instruments Type Blower
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Centrifugal Fan Price And Quantity

Price 100000.00 INR/Set
Minimum Order Quantity 1 Set

Centrifugal Fan Product Specifications

Capacity 1000 - 20000 CFM
Automation Grade Semi-Automatic
Cooling System Air Cooled
Instruments Type Blower
Efficiency Up to 75%
Dimension (L*W*H) 1200 x 800 x 900 mm
Weight 120 kg
Temperature Ambient to 80C
Power Source Electric
Display Type Analog
Product Type Centrifugal Fan
Voltage 380 V
Usage & Applications Industrial Ventilation, HVAC Systems, Dust Collection
Material Mild Steel
Air Flow 1000 - 20000 m/hr
Noise Level < 80 dB
Orientation Horizontal
Surface Powder Coated
Processing Time Continuous Operation
Measurement Air Volume

Centrifugal Fan Trade Information

FOB Port JNPT Nava Sheva MumbaiMumbai
Payment Terms Letter of Credit (L/C), Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T)
Supply Ability 100 Set Per Month
Delivery Time 1 Week
Packaging Details Available in standard as well export worthy packaging
Main Domestic Market All India
Certifications ISO/GMP/NGT

Product Description

CENTRIFUGAL FANS

Air : Up to 100000 m3/hr
Suction Head : up to 600 mm wcc
Temperature : 200 (Max)
Drive : Direct Motored / Coupled / Belt Driven
Efficiency : More than 78%
Noise Level : Less than 90 DB
Fan Performance as per : IS 4897 - 1987
Vibration as per : IS 1940

Applications :

Forced Draft Fan
Induced Draft Fan
Combustion Air Fan
Primary Air Fan
Secondary Fan
Cooling Fan
Exhaust Fan
Process Fan

High Efficiency Industrial Ventilation

Designed for heavy-duty use, this centrifugal fan offers high efficiency up to 75%. It ensures reliable air movement for factories, warehouses, and chemical plants. The floor-mounted unit operates continuously, helping maintain indoor air quality, manage dust, and control temperatures for safer, more comfortable environments. With configurable drive arrangements and a durable, powder-coated finish, longevity and minimal maintenance are assured.

Robust Construction and Safety Features

Constructed from mild steel and finished with a corrosion-resistant powder coating, this fan offers exceptional durability in demanding industrial environments. The IP55 protection and Class F insulation ensure safe operation even in humid or dusty conditions. Its air-cooled system, noise level below 80 dB, and horizontal orientation add to user convenience and operational safety.

FAQs of Centrifugal Fan:

Q: How does the backward curved impeller design enhance the centrifugal fans performance?

A: The backward curved impeller increases energy efficiency and reduces the risk of contamination buildup, ensuring smooth air flow and improved static pressure performance for industrial applications.

Q: What is the recommended process for installing the floor-mounted centrifugal fan?

A: The fan should be placed on a flat, stable surface in a horizontal orientation. Ensure proper anchoring and electrical connections complying with the voltage and insulation class specifications. Follow the manufacturers installation guidelines for direct or belt-driven arrangements.

Q: Where can this fan be most effectively used?

A: This centrifugal fan is ideal for factories, warehouses, chemical plants, and similar environments requiring industrial ventilation, HVAC systems, or dust collection solutions.

Q: What are the benefits of using a direct or belt drive arrangement in this fan?

A: A direct drive offers lower maintenance and increased efficiency, while a belt-driven configuration allows for flexible speed control and easier adjustments to airflow requirements.

Q: When is continuous operation recommended for this centrifugal fan?

A: Continuous operation is suitable when a consistent air exchange or dust removal process is critical, such as in chemical processing or large manufacturing areas operating around the clock.

Q: How does the corrosion-resistant construction benefit long-term usage?

A: The powder-coated mild steel structure resists corrosion in harsh industrial environments, extending the lifespan of the fan and reducing maintenance needs for users in India and globally.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Air Pollution Control System' category

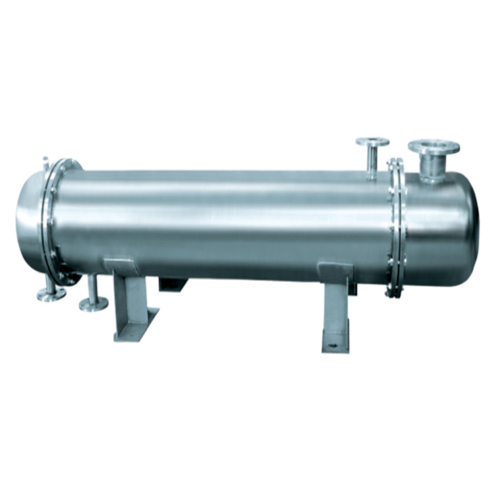

WASTE HEAT RECOVERY UNIT Price : 300000.00 INR/Set Minimum Order Quantity : 1 Air Flow : 5000 m3/h 30000 m3/h Noise Level : < 75 dB(A) Orientation : Horizontal / Vertical Processing Time : Continuous Measurement : Inlet/Outlet Gas Temperature Surface : Paint Coated / SS Finish Display Type : Digital / Analog Voltage : 415 V Usage & Applications : Industrial Waste Heat Recovery, Energy Saving, Flue Gas Heat Recovery Product Type : WASTE HEAT RECOVERY UNIT Material : Mild Steel / Stainless Steel Reactor Thickness : 8 20 mm Weight : 2200 kg (approx.) Temperature : Up to 420C Sensor Type : Thermocouple / RTD Dimension (L*W*H) : 3000 mm x 1200 mm x 1750 mm Power Source : Electric Automation Grade : Semi Automatic / Automatic Scrubber Type : Wet / Dry Capacity : 1000 Nm3/hr to 50000 Nm3/hr Efficiency : 78% 95% Cooling System : Other, Water / Air Cooled Instruments Type : Temperature & Pressure Sensors
