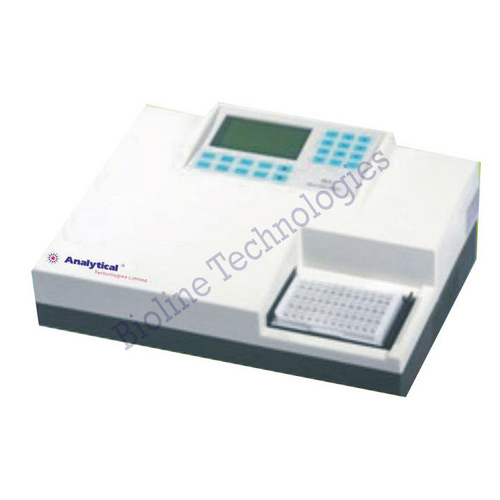

ELISA READER

ELISA READER
ELISA READER
Product Code : 60
Brand Name : Jove Automations
Product Description

Established in the year 2004, we are dedicated towards offering premium grade Elisa Reader. The provided reader detects and process biological and chemical data using absorbance, luminescence, and fluorescence detection modes. Offered reader is manufactured using superior grade components and modern technology by our experts who have enough knowledge in this field. Moreover, our offered Elisa Reader is tested against various parameters under the inspection of our quality controllers to deliver a flawless range at the client's end.

Features:



  • Optimum functionality

  • Sturdy construction

  • Effective results

  • Less maintenance

Specifications:

ELISA READER

Our all products having in product quality accreditation like ISO-9001,ISO-14001,ISO- 13485,CE,WHO-GMP & FDA

Readwell TOUCH is an Automatic ELISA plate analyzer with user friendly & sophisticated on board software . It is a stand alone system for all routine immunoassays, Biochemical’s, hormones & drug levels. Its versatile & extensive software supports most of the calculation required for interpretation of results. It is economical, reliable & high precision machine.



Special Ffeaturers

  • Robust system with built –in stabilizer.
  • Built in shaker with variable speed & duration.
  • Results printing in matrix mode format.
  • Option to run multiple blank in Cut –off mode.
  • Dichromatic reading.
  • Ability to read from any strip in a single plate.
  • Extensive curve plotting.
  • Unique circuitry for long life of lamp.
  • Facility to enter clinic name.
  • Overload indication.

    Technical Data

     Human Machine Interface

     Touch Panel/Keypad

     Linear Measurement Range 0.000 to 3.500  Absorbance Unit

     0.000 to 3.500 whichever is higher ,from 0 to 1.5 A +-  3% from 1.5 to 3.5A

     Drift

     <0.005 A/hr

     Photometric Linearity

     2.5 A

     Optical Measurement

     8 channel

     Type of Filter

     Narrow band interface

     Wave length

     405nm, 450nm, 492nm, 630nm & four Optional

     Half Band width

     10nm +- 2nm

     Selection

     Automatic by stepper Motor

     Light source

     Tungsten halogen lamp,20W

     Display

     6” Graphics LCD, Negative Blue ,STN

     Curve Plotting

     2.5” Graphical Representation on printer

     plate carrier movement

     Precisely through the stepper motor

     Printer

     Built in thermal printer 52 columns

     Memory  Battery backup for 250 test & More than 2500results
     Analysis Mode  Absorbance(normal & diff.)
      Power
     Wattage  75 Watts
     Voltage  115-230volts+-10%, 50/60Hz
     Operating position  On horizontal flat, rigid & vibration free surface

    Operating condition

     Temp.  from +18 C to 35 C
     Relative humidity  up to 80%
    Storage condition
     Temp.  from-10 C to 40 C
     Relative humidity  Up to 80%
     Enclosure  ABS Fire Retardant
     Size (cm)  36 x 36 x 22(LxBxH)
     Weight  10kgs
